Integrated Power Supply – iPad

iPad IPS

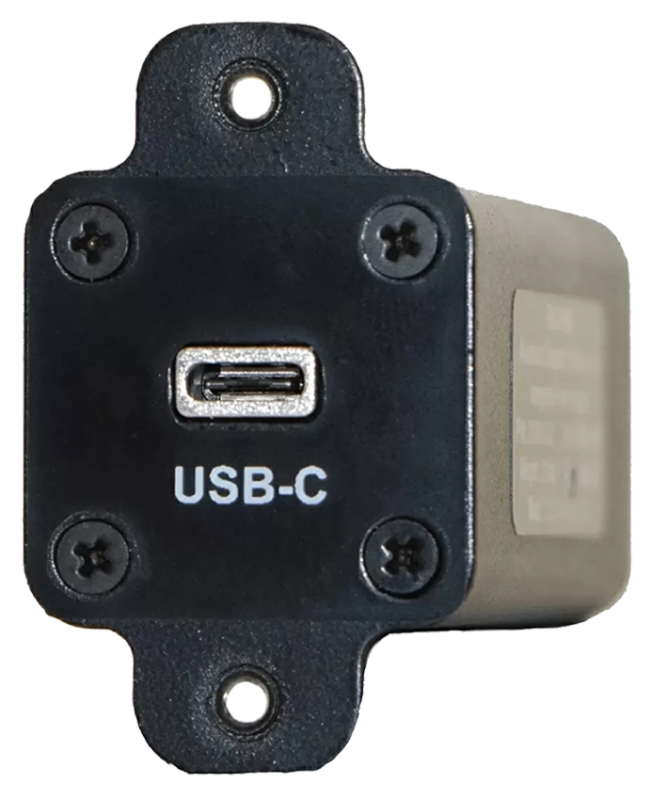

The Integrated Power Supply – is an on-board Apple iPad charger designed to charge your iPad IAW Apple iPad charging criteria for maximum charging capabilities.

ENQUIRE NOW

SPECIFICATION

PART NUMBER: 213013-1

Meets EASA TGL-36 Requirements
Meets FAA AC 120-76B
Meets MIL-STD-461 “EMI” Standards

RTCA DO-160G: Section 7(B), 8(S), 15(A), 17(B), 18(R), 19(BCX), 20(TT), 21(MM), 25(A)

Mating Connectors - J1 (Input)

P/N: M24308/4-1F:

  • Pin 1 – Power 28VDC,
  • Pin 2 – Ground
  • Pin 3 – Chassis
  • Pin 4 – Inhibit

Mating Connectors - J2 (Output)

P/N: M24308/2-1F:

  • Pin 1 – Power 5.2VDC @ 15W Max
  • Pin 2 – Ground
  • Pin 3 – Chassis
  • Pin 4 – Sense (-) White
  • Pin 5 – Sense (+) Green

Features:

  • Inputs: 28VDC @ 1.3 AMP Max – Over Voltage Protection
  • Outputs: 5.2VDC @ 15W Max – Short Circuit Protection – Over Current Limiter (IAW Apple MFI)
  • Dimensions: 3.25”(8.255cm) L x 2.25” (5.715cm) W x 1” (2.54cm) H
  • Weight: 6.8oz/193g – Aviation Grade Aluminum Housing(6061-T6)
  • Installation 8 Feet/ 2.4384 Meters – Maximum distance between IPS and Tablet
  • Mounting Holes: Four (4) each # 4 – 40

Compliant:

Avionics Support Group is an Apple MFI Developer.

Compatibility: Works with all iPad models
