EFB Tablet Cradle for the ToughPad FZ ‐ G1

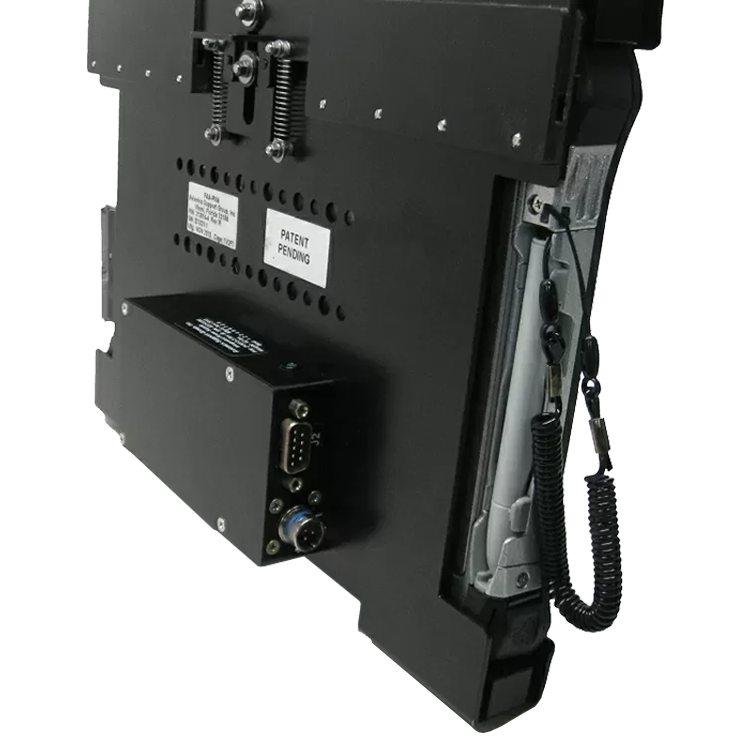

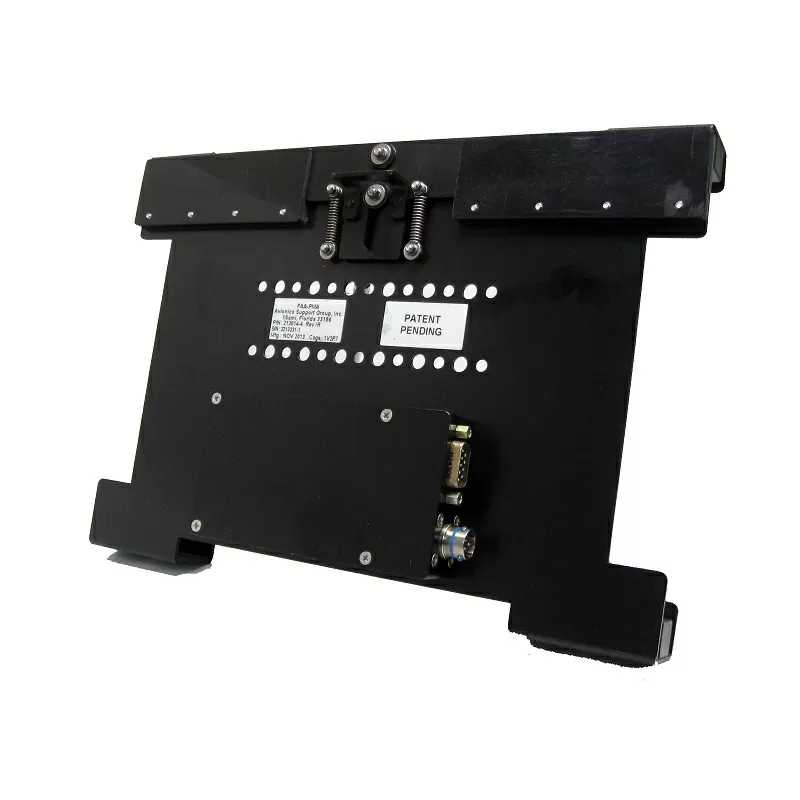

The EFB Cradle–FZG1 is a ToughPad mount designed for use with the Panasonic ToughPad Model FZ-G1. The Electronic Flight Bag cradle holds the Tablet PC securely and safely in place, while allowing access to all the ports on the device.



ENQUIRE NOW

SPECIFICATION

PART NUMBER: 213014‐4

Capacity: Maximum display weight 6lbs / 2.72155 kg

RTCA DO160G: Section 7(B), 8(S)

Applicability: Panasonic ToughPad FZ‐G1

Mounting Details

  • Screws: P/N: MS2464S49 (4ea)
  • Nuts: P/N: MS21042‐3 (4ea)
  • Washers: P/N: MS21042‐3 (4ea)
  • Charger: See IPS‐FZG1 P/N: 213013‐3 Spec Sheet for more details
  • Dimensions: 7.75” (20 cm) L x 11.00” (28 cm) W x 1.00” (2.54 cm) D
  • Weight: 0.995lbs/451g ‐ All Metal Construction
  • Proven & Reliable
  • Quick Release Mechanism for easy mounting and removal of EFB
  • Rotation: Pre‐drilled for the cfMount™ and IPS
  • Designed to fit tightly around the EFB
