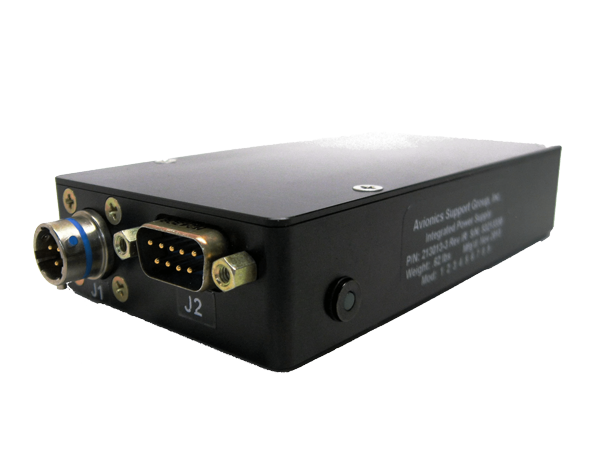

Integrated Power Supply – FZG1

The Integrated Power Supply – FZG1 is an on-board charger designed for use with the for the Panasonic Toughpad FZ-G1. The unit meet with Panasonic’s charging requirements for maximum charging capabilities.



ENQUIRE NOW

SPECIFICATION

PART NUMBER: 213013-3

Meets EASA TGL-36 Requirements
Meets FAA AC 120-76B
Meets MIL-STD-461 “EMI” Standards

RTCA DO-160G: Section 7(B), 8(S), 15(A), 17(B), 18(R), 19(BCX), 20(TT), 21(MM), 25(A)

Mating Connectors - J1 (Input)

P/N: MS27508E8F98P

  • Power
  • Ground
  • Chassis

Mating Connectors - J2 (Output)

P/N: M24308/2-1F

  • Power
  • Ground
  • Sensor

Installation Screws directly onto the IPS

  • Dimensions: 3.25”(8.255cm) L x 2.25” (5.715cm) W x 1” (2.54cm) H
  • Weight: 8oz/227g - Aviation Grade Aluminum Housing (6061-T6)
  • Screws directly onto the IPS
  • Inputs: Inputs 28VDC - Over Voltage Protection
  • Outputs: Outputs 16VDC @ 100W Max - Short Circuit Protection, Over current Limiter

Compliant:

Meets with Panasonic Toughpad Charging Requirements

Works with Toughpad FZ-G1

Mounts directly to the back of ASG Cradle – FZG1 P/N 213014-4
