Microsoft Surface IPS

Specifications

• Dimensions: 3.25″{8.255cm) L x 2.6″ (6.604cm) W x .83″ (2.1082cm) H
• Weight: 6.8oz/193g -Aviation Grade Aluminum Housing(6061-T6)
• Install: 8 Feet/ 2.4384 Meters – Maximum distance between IPS and Tablet. Screws directly onto the IPS
• Mounting Holes: Cradle Mounted or Sidewall
• Input: 28VDC@ 1.5 AMP Max
• Output: 12VDC@ 2.58 AMP

Mating Connectors – J1 (Input)

P/N: M24308/4-1F

• Pin 1 – Power 28VDC,
• Pin 2 – Ground
• Pin 3 – Chassis
• Pin 4 – Inhibit

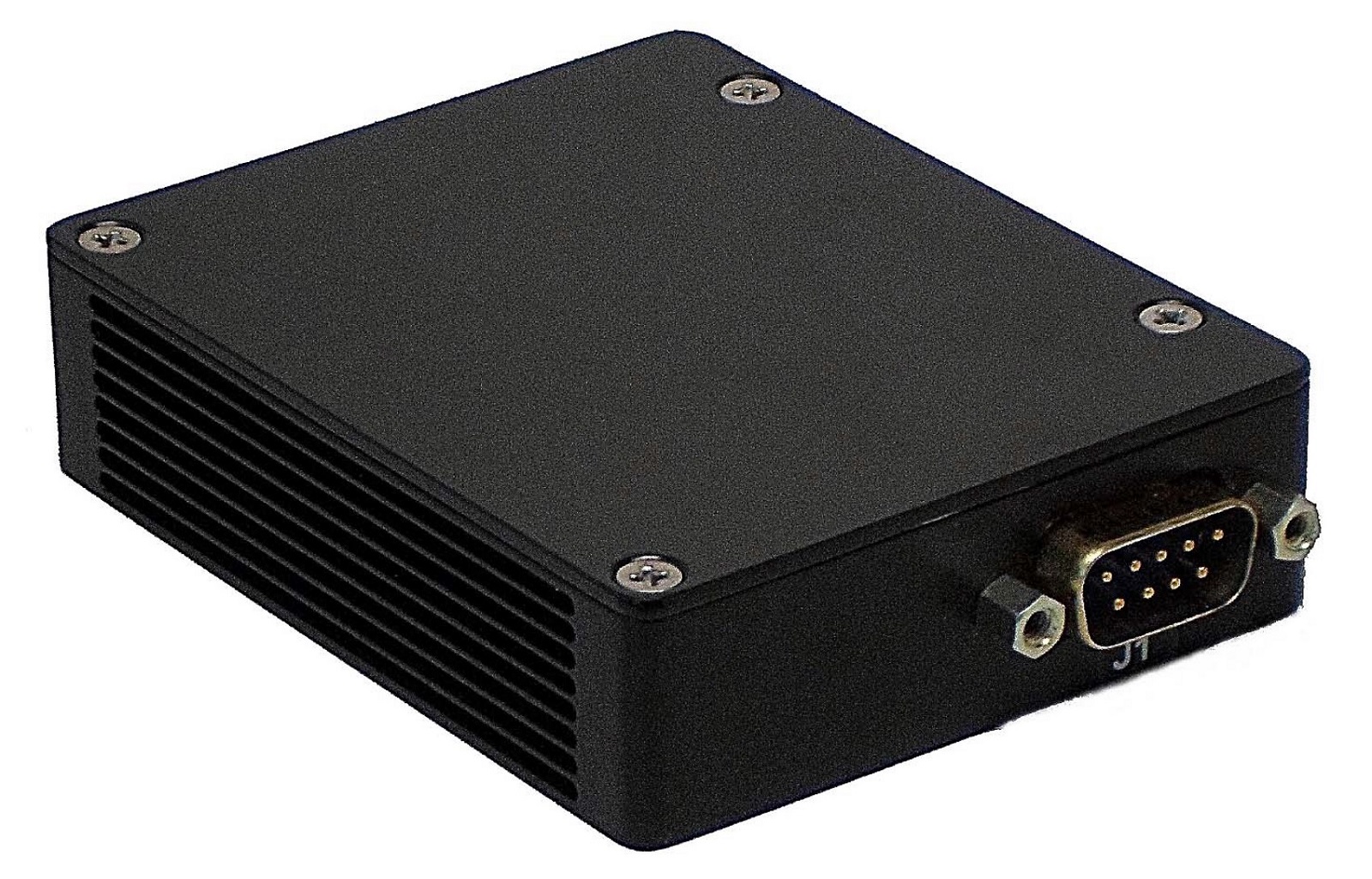

Part Number: 213013-4

Meets EASA TGL-36 Requirements
Meets FAA AC 120-76B
Meets MIL-STD-461 “EMI” Standards

RTCADO-160G:Section7(B),8(S),15(A),17(B),18(R),19(BCX),20{TT),21(MM),25{A)

Mating Connectors – J2 (Input)

P/N: M24308/2-1F:

• Pin 1- Power 12V, 2.58A
• Pin 2 – Ground
• Pin 3 – Chassis

Compliant

Meets with Tablet Toughpad Charging Requirements

Compatibility: Works with all MS Surface Pro models
