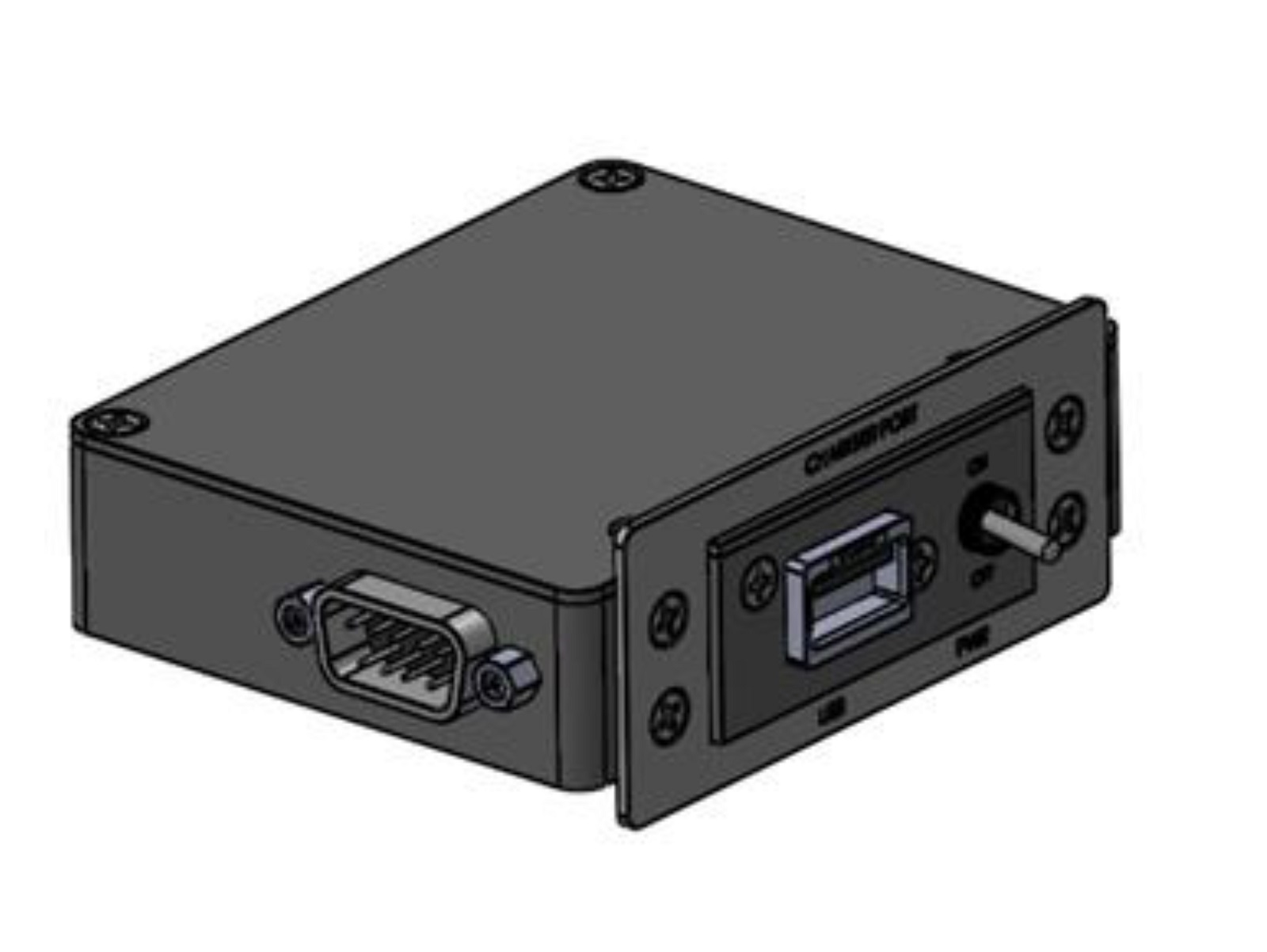

IPS Sidewall USB

Specifications

• Weight: 8oz/227g – Aviation Grade Aluminum Housing(6061 -T6)
• Installation: 8 Feet/ 2.4384 Meters – Maximum distance between IPS and Tablet
• Mounting Holes: Four (4) each # 4 – 40
• Inputs: 28VDC @ 1.0 AMP Max – Under Voltage Protection
• Outputs: 5.2VDC @ 15W Max – Short Circuit Protection – Over Current Limiter (IAW Apple MFI)

Mating Connectors – J1 (Input)

P/N: M24308/2-1F

• Pin 1 – Power 28VDC,
• Pin 2 – Ground
• Pin 3 – Chassis
• Pin 4 – Inhibit

Part Number: 213013-19

Meets EASA TGL-36 Requirements
Meets FAA AC 120-76B
Meets MIL-STD-461 “EMI” Standards

RTCA DO-160G: Section 7(B), 8(S), 15(A), 17(B), 18(R), 19(BCX), 20(TT), 21(MM), 25(A)

Mating Connectors – J2 (Output)

US8

• Pin 1- Power 5.2VDC@ 15W Max
• Pin 2 – Sense (-) White
• Pin 3 – Sense (+) Green
• Pin 4 – GND

Compliant

Mount: IPS is mounted on the sidewall
Compliant: Avionics Support Group is an Apple MFI Developer.
