EFB Slide cfMount™

EFB Slide cfMount™

cfMount logo ASG

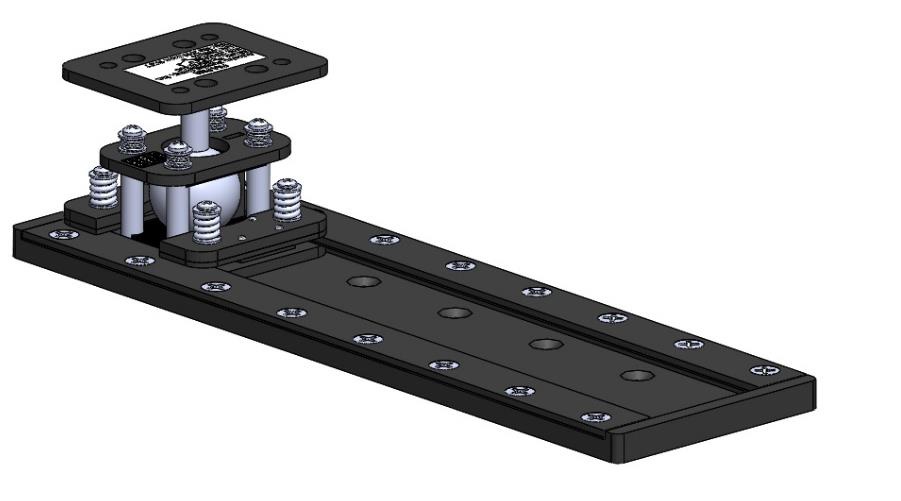

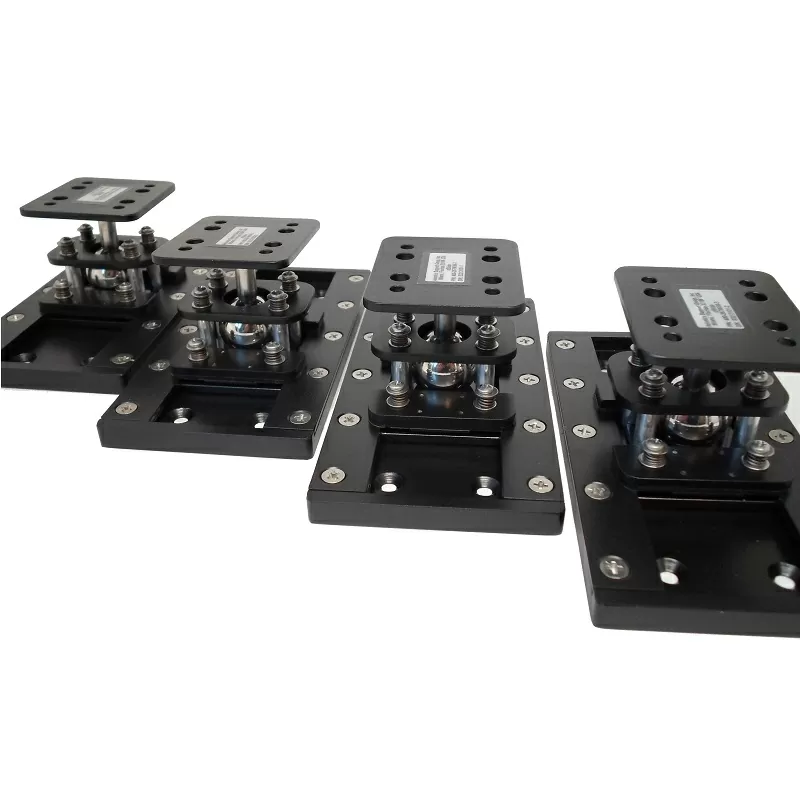

The Slide cfMount™ is a fixed mounted base for attaching your EFB to the aircraft. The Slide model is designed for use on all wide body aircrafts.  The mount provides maximum stability and reliability with five (5) + years in operation. The Slide function of this allows the pilots to slide the EFB AFT when on the ground providing easy access the egress window. Once in the air the pilot can then slide the EFB FWD to an optimal viewing angle. Our Constant Friction technology received a US Patent for its ability to keep its place in the most severe turbulence, while allowing you to adjust its position to your preferred viewing angle using one (1) hand.




PART NUMBER: 2579699‐3

Patent: US Patent No. 8231081

RTCA DO‐160G Tested to Section 7(B) and 8(S)

Capacity: Maximum Display Weight 6lbs/2.72155kg

FAA STC No. ST04003AT – Boeing B767‐200, ‐300
FAA STC No. ST04000AT – Boeing B777‐200, ‐300

  • Dimensions: 6”/15.2cm L x 3”/7.62cm W x .36”/.9cm H ‐ Low Profile
  • Weight: 1 lb/.45kg
  • Solid and Rugged Made of Aircraft grade aluminum
  • Easy to install and Use
  • Rotation: 360º Rotation with 20º Tilt Angel
  • Pre‐Drilled Hole Pattern Accommodates All ASG Cradles & IPS
